Product Conductive Tape

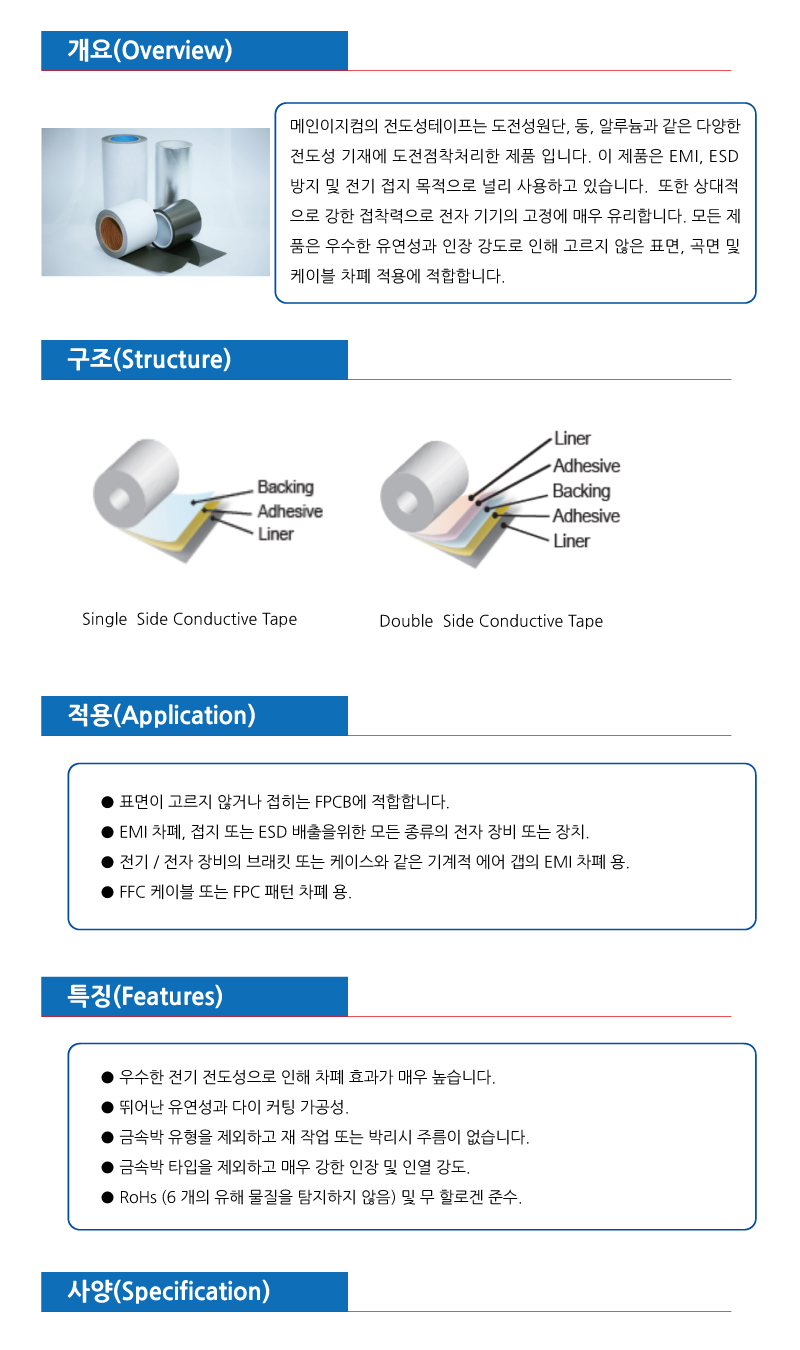

Conductive Tape

[ Single Side Conductive Tape]

No Part No Backing Color Adhesive
Type		 Thickness [mm] 1)  Adhesive Conductivity Temp.Range
[℃]
Force 2) S:Top Side
Weaving Plating [gf/inch] 3) Z:Top-Bottom
1 EGCT-P0030SG Plain Weave Ni Gray Acrylic 0.03 800 S:0.1 / Z:0.05  -30~105
2 EGCT-P0050SG Plain Weave Ni Gray Acrylic 0.05 1000 S:0.1 / Z:0.08  -30~105
3 EGCT-P0080SG Plain Weave Ni Gray Acrylic 0.08 1000 S:0.1 / Z:0.08  -30~105
4 EGCT-P0110SG Plain Weave Ni Gray Acrylic 0.11 1000 S:0.1 / Z:0.08  -30~105
5 EGCT-P0150SG Plain Weave Ni Gray Acrylic 0.15 1000 S:0.1 / Z:0.1  -30~105
6 EGCT-P0180SG Plain Weave Ni Gray Acrylic 0.18 1000 S:0.1 / Z:0.1  -30~105
7 EGCT-P0220SG Plain Weave Ni Gray Acrylic 0.22 1000 S:0.1 / Z:0.1  -30~105
8 EGCT-R0050SG RipStop Ni Gray Acrylic 0.05 1000 S:0.1 / Z:0.08  -30~105
9 EGCT-R0110SG RipStop Ni Gray Acrylic 0.11 1000 S:0.1 / Z:0.08  -30~105
10 EGCT-N0040SG Non-Woven Ni Gray Acrylic 0.04 1000 S:0.1 / Z:0.08  -30~105
11 EGCT-N0080SG Non-Woven Ni Gray Acrylic 0.08 1000 S:0.1 / Z:0.08  -30~105
12 EGCT-N0150SG Non-Woven Ni Gray Acrylic 0.15 1000 S:0.1 / Z:0.1  -30~105
13 EGCT-G0050SG Plain Weave Au Gold Acrylic 0.05 1000 S:0.08 / Z: 0.06  -30~105
14 EGCT-G0070SG Plain Weave Au Gold Acrylic 0.07 1000 S:0.08 / Z: 0.06  -30~105
15 EGCT-G0110SG Plain Weave Au Gold Acrylic 0.11 1000 S:0.08 / Z: 0.06  -30~105
16 EGCT-A0070SS Al Foil Silver Acrylic 0.07 1000 Z:0.1  -30~105
17 EGCT-C0070SC Cu Foil Cu Acrylic 0.07 1000 Z:0.1  -30~105

[ Double Side Conductive Tape ]

No Part No Backing Color Adhesive
Type		 Thickness [mm] 1)  Adhesive Conductivity Temp.Range
[℃]
Force 2) S:Top Side
Weaving Plating [gf/inch] 3) Z:Top-Bottom
1 EGCT-P0035DG Plain Weave Ni DarkGray Acrylic 0.035 800 S:0.5 / Z:0.05  -30~105
2 EGCT-P0040DG Plain Weave Ni DarkGray Acrylic 0.05 1400 S:0.5 / Z:0.05  -30~105
3 EGCT-P0065DG Plain Weave Ni DarkGray Acrylic 0.065 1000 S:0.5 /  Z:0.08  -30~105
4 EGCT-P0100DG Plain Weave Ni DarkGray Acrylic 0.1 1200 S:0.5 /  Z:0.08  -30~105
5 EGCT-P0120DG Plain Weave Ni DarkGray Acrylic 0.12 1100 S:0.5 / Z:0.1  -30~105
6 EGCT-P0150DG Plain Weave Ni DarkGray Acrylic 0.15 1000 S:0.5 / Z:0.1  -30~105
7 EGCT-P0200DG Plain Weave Ni DarkGray Acrylic 0.2 1000 S:0.5 / Z:0.1  -30~105
8 EGCT-R0050DG RipStop Ni DarkGray Acrylic 0.05 1400 S:0.5 /  Z:0.08  -30~105
9 EGCT-N0030DG Non-Woven Ni DarkGray Acrylic 0.03 1400 S:0.5 / Z:0.1  -30~105
10 EGCT-N0050DG Non-Woven Ni DarkGray Acrylic 0.05 1000 S:0.5 /  Z:0.08  -30~105
11 EGCT-M0110DG Mesh Ni DarkGray Acrylic 0.11 1100 S:0.5 / Z:0.2  -30~105
12 EGCT-A0050DG Al Foil DarkGray Acrylic 0.05 1000 S:0.5 / Z:0.1  -30~105
13 EGCT-A0090DG Al Foil DarkGray Acrylic 0.09 1000 S:0.5 / Z:0.1  -30~105
14 EGCT-C0090DB Cu Foil Black Acrylic 0.05 1400 S:0.5 / Z:0.1  -30~105
