Product Foam Cushion

Foam Cushion

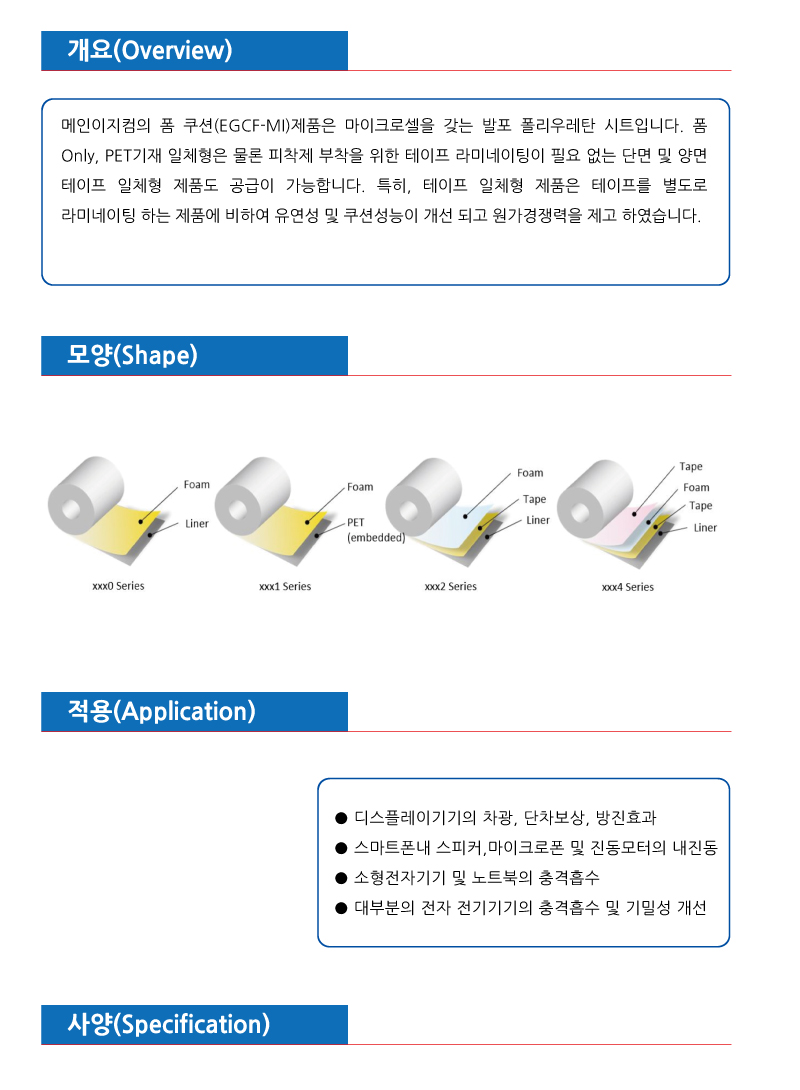

Foam Cushion – [EGCF-MI]

[ SS Series]

c Part No Thickness[mm] Density     [g/㎤] Compression
set [50%, 70℃, 22hrs]		 CFD[㎏/㎤]at 25% at 50% Strain[Max,%] Adhesion
(Tape embedded)
[mm] [g/㎤] [50%, 70℃, 22hrs] at 25% at 50% [Max,%] [gf/in, 180℃]
1 EGCF-MI-SS**010 0.1 0.40 ~ 0.75 < 30 0.39       1.03 40 ~ 60 min. 500
2 EGCF-MI-SS**020 0.2 0.30 ~ 0.75 < 30 0.22       0.62 50 ~ 60 min. 500
3 EGCF-MI-SS**030 0.3 0.30 ~ 0.75 < 30 0.20       0.55 60 ~ 70 min. 500
4 EGCF-MI-SS**050 0.5 0.30 ~ 0.55  < 30 0.20       0.45 60 ~ 70 min. 500
5 EGCF-MI-SS**070 0.7 0.30 ~ 0.45 < 30 0.19       0.43 60 ~ 70 min. 500
6 EGCF-MI-SS**100 1.0 0.20 ~ 0.40 < 30 0.18       0.40 60 ~ 70 min. 500
7 EGCF-MI-SS**120 1.2 0.20 ~ 0.40 < 30 0.13       0.38 70 ~ 80 min. 500
8 EGCF-MI-SS**150 1.5 0.20 ~ 0.35 < 30 0.11       0.24 70 ~ 80 min. 500



[FS Series]

No Part No Thickness Density Compression
set		 CFD[㎏/㎤] Strain Adhesion
(Tape embedded)
[mm] [g/㎤] [50%, 70℃, 22hrs] at 25% at 50% [Max,%] [gf/in, 180℃]
1 EGCF-MI-FS**010 0.1 0.40 ~ 0.75 < 30 0.9 1.45 50 ~ 60 min. 500
2 EGCF-MI-FS**020 0.2 0.40 ~ 0.75 < 30 0.45 0.82 50 ~ 60 min. 500
3 EGCF-MI-FS**030 0.3 0.30 ~ 0.75 < 30 0.35 0.75 60 ~ 70 min. 500
4 EGCF-MI-FS**050 0.5 0.30 ~ 0.55 < 30 0.33 0.7 60 ~ 70 min. 500
5 EGCF-MI-FS**070 0.7 0.30 ~ 0.50 < 30 0.3 0.65 60 ~ 70 min. 500
6 EGCF-MI-FS**100 1 0.20 ~ 0.45 < 30 0.2 0.5 60 ~ 70 min. 500
7 EGCF-MI-FS**120 1.2 0.20 ~ 0.45 < 30 0.15 0.45 70 ~ 80 min. 500
8 EGCF-MI-FS**150 1.5 0.20 ~ 0.45 < 30 0.13 0.35 70 ~ 80 min. 500



[FN Series]

No Part No Thickness Density Compression
set		 CFD[㎏/㎤] Strain Adhesion
(Tape embedded)
[mm] [g/㎤] [50%, 70℃, 22hrs] at 25% at 50% [Max,%] [gf/in, 180℃]
1 EGCF-MI-FN**010 0.1 0.40 ~ 0.75 < 10 1.36 4 50 ~ 60 min. 500
2 EGCF-MI-FN**020 0.2 0.40 ~ 0.75 < 10 0.86 2.2 50 ~ 70 min. 500
3 EGCF-MI-FN**030 0.3 0.30 ~ 0.75 < 10 0.6 1.5 50 ~ 70 min. 500
4 EGCF-MI-FN**050 0.5 0.30 ~ 0.55 < 10 0.53 1.5 60 ~ 75 min. 500
5 EGCF-MI-FN**070 0.7 0.30 ~ 0.50 < 10 0.49 1.3 60 ~ 80 min. 500
6 EGCF-MI-FN**100 1 0.20 ~ 0.50 < 10 0.48 1.2 60 ~ 80 min. 500
7 EGCF-MI-FN**120 1.2 0.20 ~ 0.50 < 10 0.47 1.1 60 ~ 80 min. 500
8 EGCF-MI-FN**150 1.5 0.20 ~ 0.50 < 10 0.45 1 60 ~ 85 min. 500



[HN Series]

No Part No Thickness Density Compression
set		 CFD[㎏/㎤] Strain Adhesion
(Tape embedded)
[mm] [g/㎤] [50%, 70℃, 22hrs] at 25% at 50% [Max,%] [gf/in, 180℃]
1 EGCF-MI-HN**010 0.1 0.45 ~ 0.75 < 5 2.1 6.3 40 ~ 60 min. 500
2 EGCF-MI-HN**020 0.2 0.45 ~ 0.75 < 5 1.9 5.5 40 ~ 70 min. 500
3 EGCF-MI-HN**030 0.3 0.40 ~ 0.55 < 5 2 5 40 ~ 70 min. 500
4 EGCF-MI-HN**050 0.5 0.40 ~ 0.50 < 5 1.7 4.5 40 ~ 75 min. 500
5 EGCF-MI-HN**070 0.7 0.40 ~ 0.50 < 5 1.6 4 45 ~ 75 min. 500
6 EGCF-MI-HN**100 1 0.40 ~ 0.50 < 5 1.4 3.5 45 ~ 75 min. 500
7 EGCF-MI-HN**120 1.2 0.40 ~ 0.50 < 5 1.3 3 50 ~ 80 min. 500
8 EGCF-MI-HN**150 1.5 0.40 ~ 0.50 < 5 1.2 2.8 50 ~ 80 min. 500

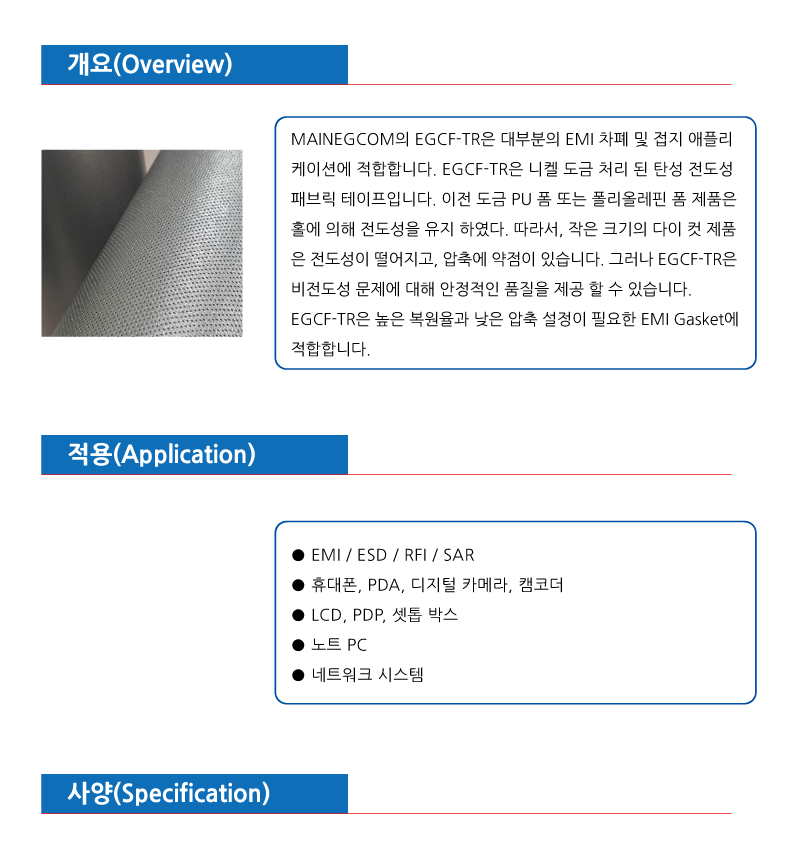

Foam Cushion – [EGCF-TR]

PN Resistance 180′ Peel
생산가능두께 기재 Width Color Surface Volume Adhesion
EGCF-TR-A 0.3 ~ 1.5mm Conductive Polyolefin Foam + ATU 1020mm Gray <0.1Ω/□ <0.1Ω/□ Min:1000gf
EGCF-TR-T 0.3 ~ 1.0mm Conductive Polyolefin Foam + ATU 1020mm Visual <0.1Ω/□ <0.1Ω/□ Min:1000gf
Conductive NonWoven + ATU
EGCF-TR-S 0.3 ~ 1.0mm Conductive Polyolefin Foam + ATU 1020mm Gray <0.1Ω/□ <0.1Ω/□ Min:1000gf
Conductive Mesh + ATU
EGCF-TR-B 0.3 ~ 1.0mm Conductive Polyolefin Foam + ATU
Conductive Woven(D.T.Y) + ATU
EGCF-TR-M 0.3 ~ 5.0mm Conductive PU Foam + ATU 320mm/1020mm Gray <0.2Ω/□ <0.2Ω/□ Min:1000gf
Conductive Mesh
